TECHNICAL
SPECIFICATIONS
LaRioMini LarioJPK EVOJP7JP4 EVOJP4 '16
Printing TechnologySingle PassScanningScanningScanningScanningScanning
Printing Width1800 - 32001800 - 32001800 - 320018001800 - 32001800 - 3200
Max Nr° of colorsup to 12up to 8up to 8up to 8up to 8up to 8
Nr° of Print Heads according to configuration64321684
Max Speed75 m/min - - - - -
Max speed: 8 colors - 935 m/h485 m/h295 m/h170 m/h100m/h
Max Speed: 2xCMYK - 1090 m/h550 m/h340 m/h210 m/h134 m/h
Printing Resolution (dpi)600x600600 x 600600x600 600x600600x600 600x600
Print head native resolution (dpi)600600600 600600 300
Gray Levels161616161616
Drop Sizefrom 4 to 72plfrom 4 to 72plfrom 4 to 72plfrom 4 to 72plfrom 4 to 72plfrom 4 to 72pl
Inks SystemOPENOPENOPENOPENOPENOPEN
Software SystemOPENOPENOPENOPENOPENOPEN
Head crash protective system - -
Heated driven pressure roll - - - -
Embedded web server for cost report
Qwizard hardware - - - -
Wi-Fi Remote Control - - - - -
Local printing queue management system - - - -
Acimit Green Label
Print Head program
NOTE:
The printing speeds have been recorded on different printing conditions. Please check specifics concerning printing mode and printing width in the related brochure.

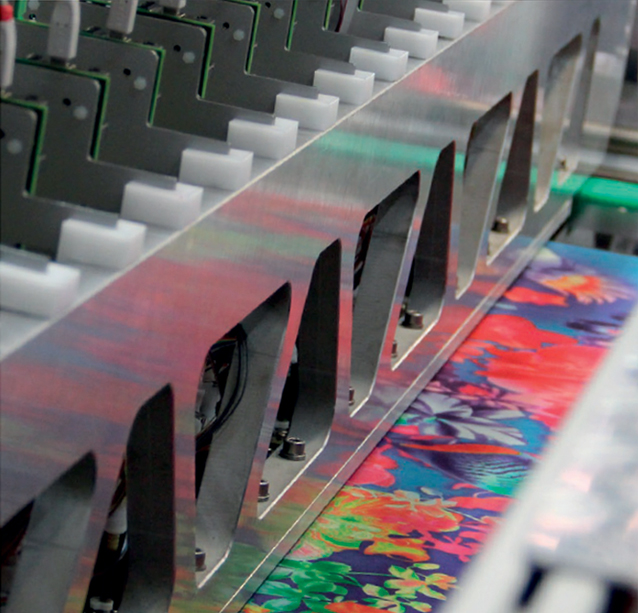

WHY WE HAVE CHOOSEN KYOCERA INKJET PRINTHEAD

PRINTEHADS ESTABLISHED TECHNOLOGY
Kyocera printheads are highly robust and designed for textile printing. KJ4B Series is specifically designed for high speed textile printing.

HEAD SIZE: 4,25 INCH HIGH PRODUCTIVITY
The size allows to cover more printing surface in one passage only, assuring higher productivity in order to meet the retailers’ demands in which, the production process is accelerated to get new collections into stores more quickly than the other segments.

VARIABLE DROP FROM 4 TO 18 PICOLITERS
Drops’ variable size allows to assure the best balance between productivity and printing definition required in textile printing, ensuring high performance and high speed.

PRINTING HEADS PROGRAM
Possible access to the "printing heads program" to support customers.
