JP7 ProfitableDurableAdaptable

JP7 is an industrial digital printing machine provided with transportation sticky belt. It has been designed to print both fabric and paper. JP7 is the right choice for those who want to increase production capacity by reducing operating costs and ensuring a rapid return on the investment.

SEGMENTS

AND APPLICATIONS


Sportswear

Fashion

Accessories

Productivity 510 sqm/h

WHY

TO CHOOSE JP7

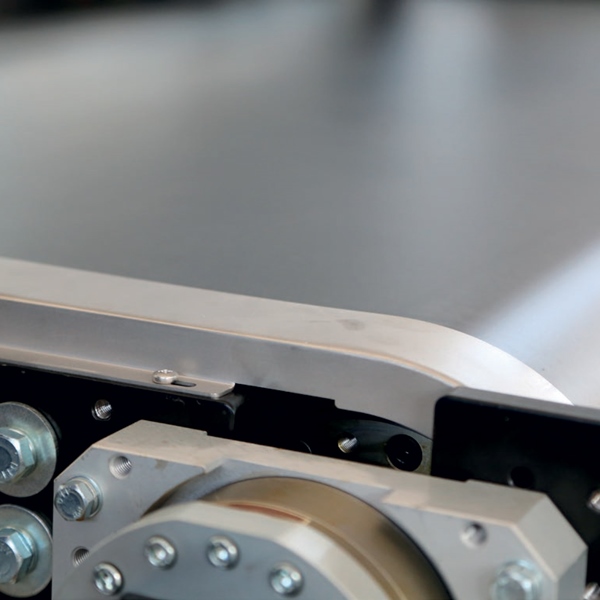

Great flexibility. The adhesive coated belt ensures the stability of the media to print. Media can be numerous including elastic fabrics.

High capacity color tanks (integrated into the machine) allow the high efficiency of the refill process.

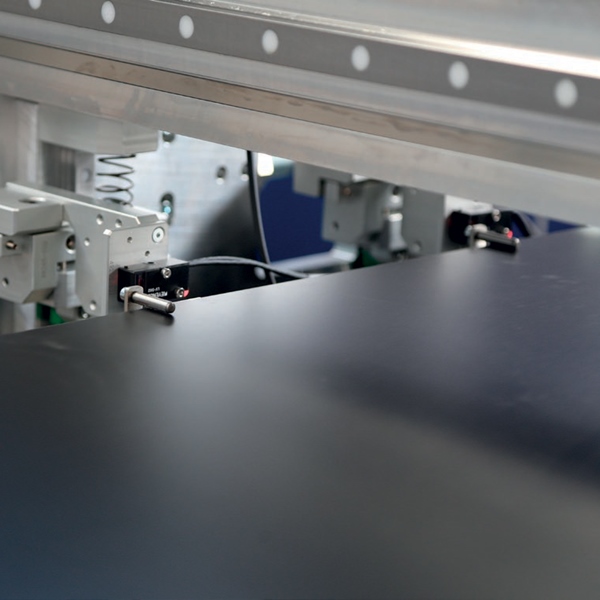

Head crash protective system by 2 laser-beam sensors. It allows the precise detection of the printing media unevenness by preventing the contact with the printing heads.


layout styles

SUSTAINABLE TECHNOLOGY

Developing sustainable technologies is our responsibility towards future generations. Thus, we have adhered to the “Sustainable Technologies” project sponsored by ACIMIT; its aim is to promote printing equipment which make smart use of: energy, chemicals and water resources. Project members undertake to: sign the project regulation; undergo the screening tests led by an authority for achieving the Green Label; apply “Supplier of Sustainable Technologies” logo to all the machines which have been awarded a Green Label.

TECHNICAL SPECIFICATIONS
Printing Technology Scanning
Printing Width 1800
Max Nr° of colors up to 8
Nr° of Print Heads 16
Max speed: 8 colors 443 sqm/h
Max Speed: 2xCMYK 510 sqm/h
Printing Resolution (dpi) 600 x 600
Print head native resolution (dpi) 600
Gray Levels 16
Drop Size from 4 to 72pl
Inks System OPEN
Software System OPEN
Head crash protective system
Heated driven pressure roll -
Embedded web server for cost report
Qwizard hardware -
Wi-Fi Remote Control -
Local printing queue management system -
Acimit Green Label
Print Head program
NOTE:
The printing speeds have been recorded on different printing conditions. Please check specifics concerning printing mode and printing width in the related brochure.
style switcher

Quality and reliability are a matter of details

Same Print Result (SPR) concept is at the core of our conviction and characterizes the entire range of MS products. For us it would be inconceivable to approach a new digital industrial printing technology without being able to multiply the productions in the future.
But it would be even more inconceivable to multiply the productions having to change the existing color-charts, without get the same chromatic printing results due to the use of different printing.
SPR means being able to choose any MS machine with the confidence that it can reproduce the same coloristic results, using the same printing conditions
