Textile printers

JPK EVO PowerfulConsistentEfficient

JPK EVO is a high-end reliability industrial printing machine designed for long production runs. It is suitable to print both paper and fabrics. JPK EVO is the right choice for those looking for: high-productivity, top-performance and the best workflow planning for the full production process.

SEGMENTS

AND APPLICATIONS


3D materials and promotional

Home Textile

Blinds and Fabrics for furniture

Technical fabrics

Productivity 550 m/h

WHY

TO CHOOSE JPK EVO

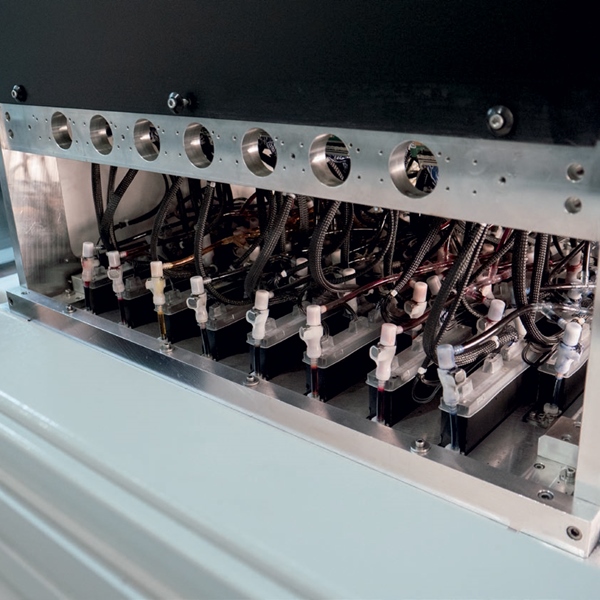

The 32 printheads ensure a higher density of drops in the drawing area by equal passes, granting the top printing speed performances.

Industrial productivity.
JPK EVO’ s print speeds combined with its multiple possible configurations make it possible to satisfy the most competitive time-to-markets.

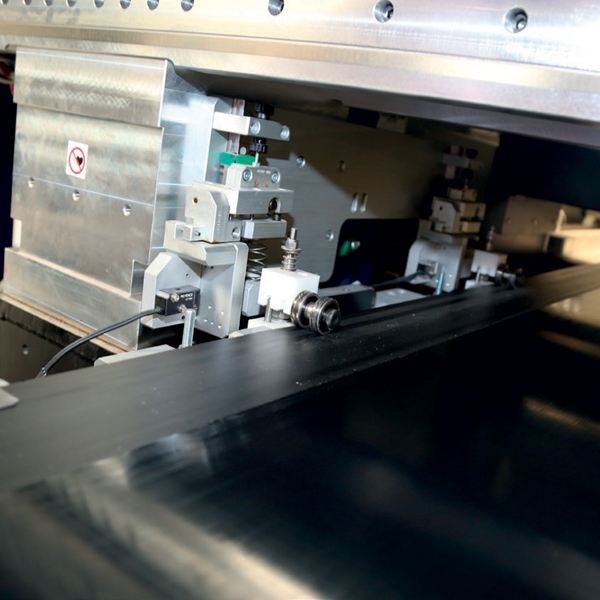

Head crash protective system by 2 laser-beam sensors. It allows the precise detection of the printing media unevenness by preventing the contact with the printing heads.


layout styles

SUSTAINABLE TECHNOLOGY

Developing sustainable technologies is our responsibility towards future generations. Thus, we have adhered to the “Sustainable Technologies” project sponsored by ACIMIT; its aim is to promote printing equipment which make smart use of: energy, chemicals and water resources. Project members undertake to: sign the project regulation; undergo the screening tests led by an authority for achieving the Green Label; apply “Supplier of Sustainable Technologies” logo to all the machines which have been awarded a Green Label.

TECHNICAL SPECIFICATIONS
Printing Technology Scanning
Printing Width 1800 - 3200
Max Nr° of colors up to 8
Nr° of Print Heads 32
Max speed: 8 colors 485 m/h
Max Speed: 2xCMYK 550 m/h
Printing Resolution (dpi) 600x600
Print head native resolution (dpi) 600
Gray Levels 16
Drop Size from 4 to 72pl
Inks System OPEN
Software System OPEN
Head crash protective system
Heated driven pressure roll
Embedded web server for cost report
Qwizard hardware
Wi-Fi Remote Control -
Local printing queue management system -
Acimit Green Label
Print Head program
NOTE:
The printing speeds have been recorded on different printing conditions. Please check specifics concerning printing mode and printing width in the related brochure.

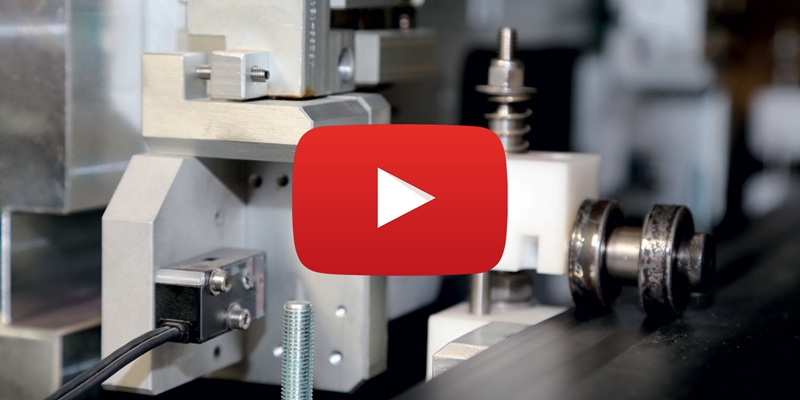

VIDEO
style switcher

Quality and reliability are a matter of details

Same Print Result (SPR) concept is at the core of our conviction and characterizes the entire range of MS products. For us it would be inconceivable to approach a new digital industrial printing technology without being able to multiply the productions in the future.
But it would be even more inconceivable to multiply the productions having to change the existing color-charts, without get the same chromatic printing results due to the use of different printing.
SPR means being able to choose any MS machine with the confidence that it can reproduce the same coloristic results, using the same printing conditions
